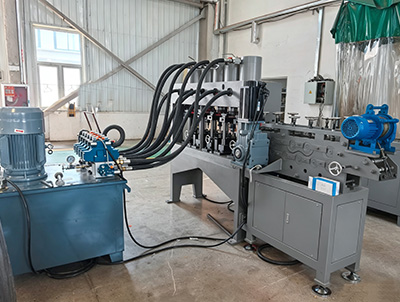

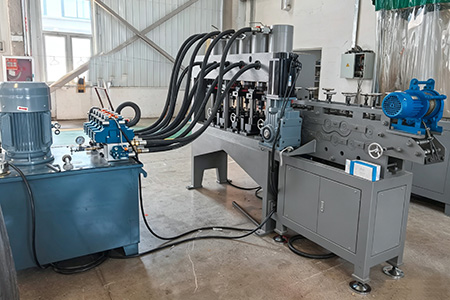

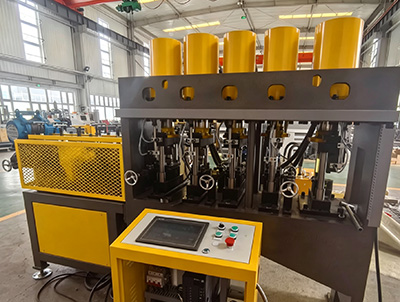

Full-automatic CNC Hoop Making Machine BG
Full-automatic CNC hooping machine is a new generation of intelligent sheet metal forming equipment, integrating automatic feeding, straightening, punching, bending and cutting integrated processes. Driven by servo numerical control system, it replaces traditional multi-process split equipment and manual bending, and is dedicated to batch production of various hooping workpieces with raw materials such as flat steel, cold rolled strip steel and stainless steel.
Industry of application

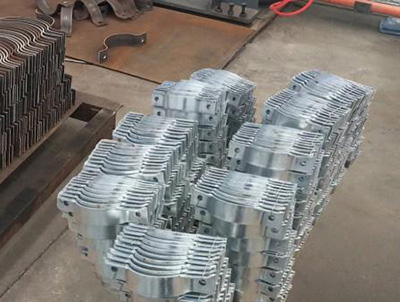

Electric power industry: pole hoop, iron tower fittings, cable fixing hoop, line cross arm accessories
PV new energy: PV support hoop, anchor hoop and PV connector
Municipal water supply and drainage: pipe hoop, fire pipe hoop and guardrail fixing hoop
Communication engineering: base station hoop, optical cable fixed support, signal pole accessories
Seismic resistance of buildings: U-shaped hoops of seismic supports and hangers, steel structure fasteners
Hardware processing plant: OEM of various non-standard special-shaped hoops and non-standard fasteners
| Item | Unit | Parameter Value |
|---|---|---|
| Machined Product Diameter | mm | Φ120-650 |
| Blank Material Size (Width x Thickness) | mm | 100×10 |
| Forming Force | kN | 400 |
| Forming Frequency | times/min | 10–20 |
| Hydraulic System Pressure | MPa | 25 |
Product advantages
Labor saving: only one person is required for the whole machine to be on duty for feeding, which replaces the traditional 3-5-person assembly line operation and greatly reduces the labor cost;
High efficiency: 1800-3000 holding hoops are produced per day for single machine, and the production efficiency is 3-4 times higher than that of traditional process;
High-precision: finished hole diameter, bending radian and perimeter error ≤ 0.03mm, and the product consistency meets the project bidding standard;
Strong versatility: one set of equipment can process U-shaped hoop, power cross arm hoop, PV support hoop, pipe hoop and sign hoop, and the new type can be put into production by changing the mould;
Low failure rate: standard industrial accessories, continuous 5000 hours of stable operation, simple daily maintenance and low after-sales maintenance cost;
Support non-standard customization: Widening, thickening and lengthening models can be customized according to the size, thickness and capacity requirements of customer workpiece.
