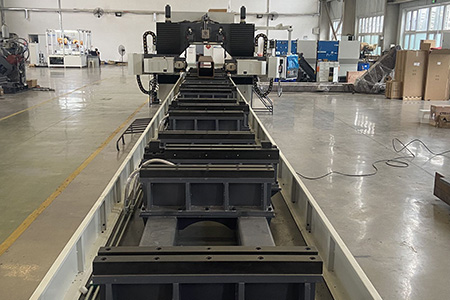

CNC Gantry High speed Double Spindle Drilling machine DZ0613
Machine tool usage:

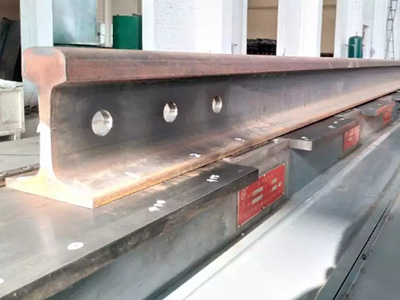

DZ0613 CNC Gantry High speed Double Spindle Drilling machine This machine is designed for drilling holes on both sides of railway beams and can also be used for drilling steel structural components, rails, towers, and other similar steel parts. It is capable of drilling through holes, blind holes, stepped holes, and chamfering hole ends (if a forming tool is used, the drilling and chamfering can be completed in a single operation). The maximum workpiece size it can handle is 13,000 mm by 600 mm.
Features of machine tools:

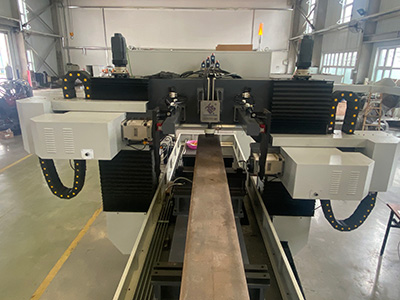

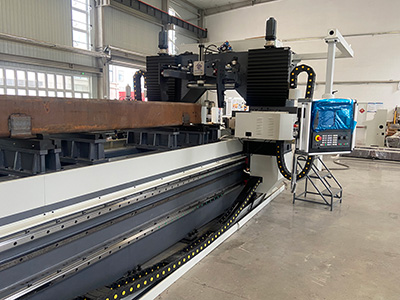

1. The CNC double-end drilling machine is a gantry-type CNC machine tool, consisting of the bed, longitudinal slide table (X-axis slide table), gantry, vertical slide table (upper and lower slide tables), power head assembly, tool magazine, electrical control system, chip removal and cooling system, and automatic lubrication system.

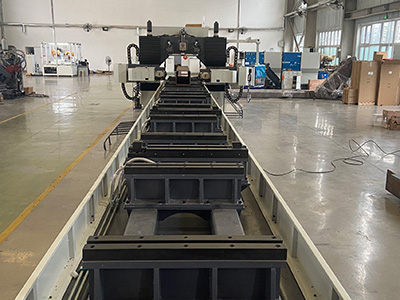

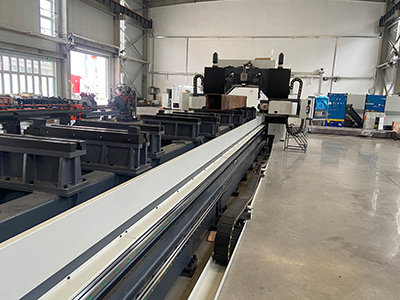

2. The bed is of welded steel structure, and the overall structure is stabilized through aging heat treatment and stress removal; Ball guide rail pairs are installed on both sides of the bed, and longitudinal sliding saddles are installed to support the gantry.
3. The gantry is a steel plate welded box structure, and the overall structure is stable through aging heat treatment and stress removal; Four ball guide rail pairs are installed on the front side of the gantry column. Each two guide rails support a set of vertical sliding saddle. The ball screw pair is driven by the servo motor to realize the Y-axis positioning.
4. The front side of each set of vertical sliding saddle is installed with ball guide rail pair to support the installation of power head sliding saddle (Z-axis). The power head sliding saddle is equipped with a set of servomotor-bearing screw pair driving mechanism to realize numerical control feeding during processing.

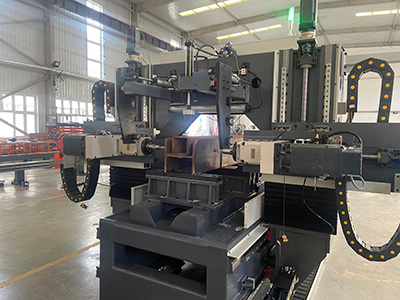

5. The power head adopts the BT40 drilling headstock, which is driven by the high-power spindle motor via the synchronous belt, with stepless speed regulation and wide speed range; The power head is equipped with a cutting cylinder, which can be easily loaded and unloaded through the button near the power head, improving the operation efficiency and reducing the labor intensity of workers.
Parameter list:
| DZ0613technical parameter | ||
|---|---|---|
| Parameter name | Items | Parameter value |
| machining range | Length x Width | 13000 x 600mm |
| Drilling power head | number | 2 |
| Spindle taper hole | BT40 | |
| Borehole diameter | Φ40mm | |
| Spindle speed | 4500r/min | |
| electrical system | CNC system | siemens |
| The parameters are for reference only, subject to the technical scheme, and support customization | ||
