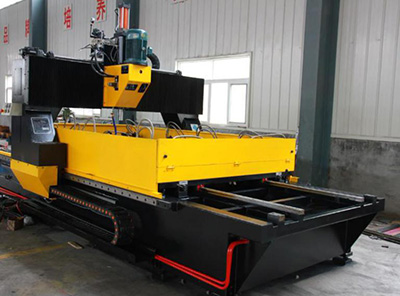

CNC Double Worktable Drilling Machine For Plates CJ1610Z CJ1616Z
Machine application:
CNC double worktable drilling machine is gantry movable structure, widely used in construction, bridge, steel tower, steel structure for plates drilling, also can be used in boiler, petrochemical industry for drilling tube sheet, baffle stack, flange etc.
Machine is flexible CNC drilling machine, suitable for mass production.
Machine configuration:
Machine is composed of worktable, movable gantry, longitudinal slip board, drilling head, automatic chip conveyor, recycle cooling device, hydraulic system, electrical control system etc.
Machine features:
1. Worktable is welded structure, after aging treatment acquires better rigidity and processing stability.

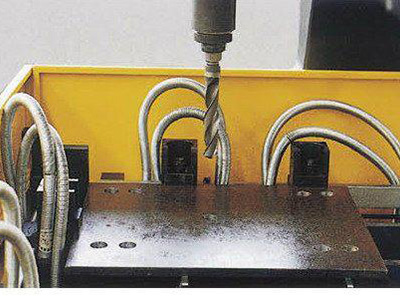

2. Can find holes to drill at X, Y axis automatically.

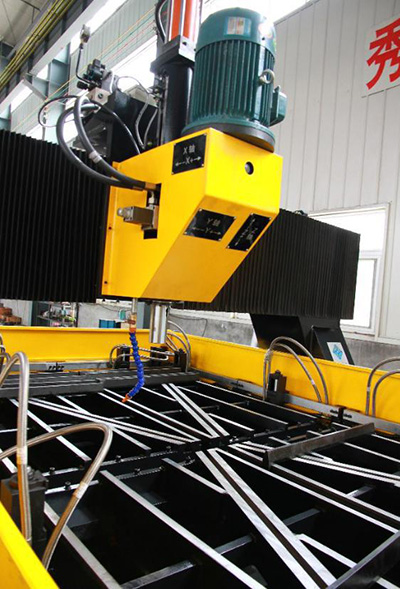

3. Drilling head is Morse 4, equip with Morse 2, 3 variable diameter handle.

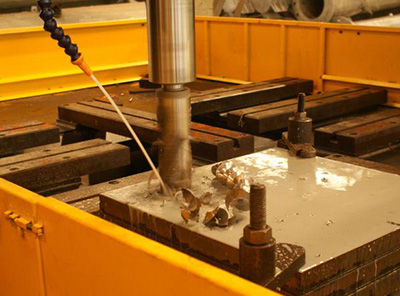

4. 4 processing zones,12 rapid hydraulic clamps, capable of clamping four sets of workpieces, and unload workpieces when drilling simultaneously.
5. Programming software based on Windows platform with CAD connection,fast and convenient programming,and visual previewing.
6. CNC+PLC system, LCD monitor.
7. Automatic chip removal, recycle use of coolant.
8. Ball screw, linear guide rail, hydraulic pump, valve, spindle, servo motor, driver, PLC are chosen from international famous brands.
Parameters list:
| Model | CJ1610Z | CJ1616Z | |
|---|---|---|---|
| Max.workpiece size(L x W)mm | 1 piece | 1600x1000 | 1600x1600 |
| 2 pieces | 800x1000 | 800x1600 | |
| 4 pieces | 800x500 | 800x800 | |
| Max. Thickness (mm) | 80 (100 for selection), can overlap processing for thinner steel plates | ||
| CNC axis | 2 | ||
| Clamping cylinder numbers | 12 | ||
| Max. drilling diameter(mm) | Ф50 | ||
| Spindle rotation speed range(r/min) | 130-560(stepless adjustment) | ||
| Total power(kW) | 12/10 | 12/10 | |
| Overall size(mm) | 3790×1810×2790 | 3780×2688×2700 | |
| Net weight(kg) | 5000 | 5500 | |
