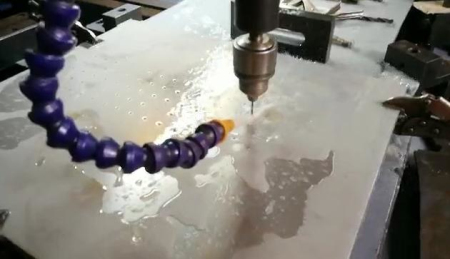

Gantry movable high speed drilling on sieve plate, tube plate, heat exchanger, flange etc, easy operation and programming. Suitable for mass production.

. Fixed installation reference & movable installation reference on either side of worktable, used for workpiece positioning.

. Gantry is driven by AC servo motor through synchronous belt and precise ball screw, good positioning and re-positioning accuracy.

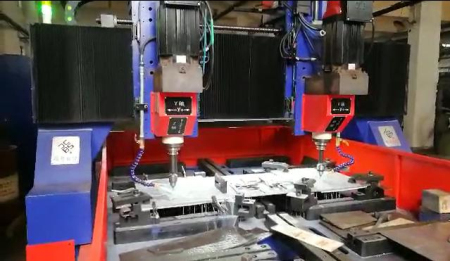

. 2 drilling heads work simultaneously, improves efficiency.

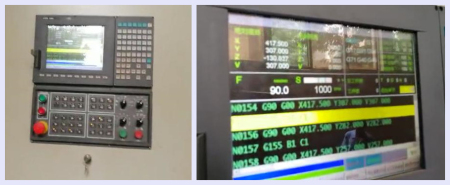

. CAD/CAM direct conversion can be realized by coordinates.

Max.workpiece thickness: ≤80mm

Max.drilling diameter: φ20mm (common carbon steel), φ20mm (stainless steel).

Min.drilling diameter: φ5mm (stainless steel).

Spindle motor power 3.7kW

Overall size: 5000*3000*3000mm

Net weight: 9t
